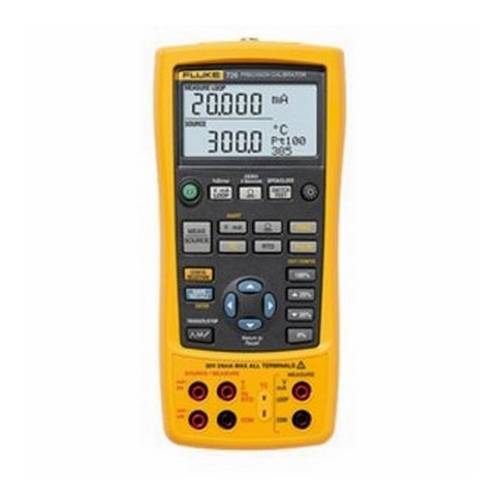

Fluke® FLUKE-725-US Calibrator Pressure Calibrator

Short Description

725 Series Multifunction Process Calibrator, Measuring Range: 30 V, 100 MIL V, -10 to 75 MIL V For DC Voltage, 24 MILAMP For DC Current, 0 - 3200 OHM For Resistance, Resolution: 0.1 DEG C, Accuracy: 0.02 PCT Plus 2 Counts For Voltage And Current, 0.1 OHM For Resistance , 0.05 PCT Plus 1 Count For Frequency, 10 PCT For Loop Power, Functions: Voltage, Current, Resistance, Frequency, Temperature For Ramp And Step, Loop Power: 24 VDC, Maximum Voltage: 30 V, Power Source: 4 AA Alkaline, Dimensions: 236 MM Length X 130 MM Width X 61 MM Height, Environmental Conditions: Operating Temperature: -10 To 55 DEG C, Storage Temperature: -20 To 71 DEG C, Operating Altitude: 3,000 MR, Weight: 0.65 KG, Includes: TL75 Test Leads, AC70A Test Clips, One Pair Of Stackable Test Leads, Users Manuals, CE, CSA Certified, EN 61010-1:1993, ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992

Fluke® Pressure Calibrator, Calibrator
MFG #: FLUKE-725-US

EECO #: FLFLUKE725US

Brand: Fluke
UPC #: 095969063500
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow/Black
UNSPSC
41112414
Application
Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
Item
Process Calibrator
Size
130 Millimeter Length x 61 Millimeter Width x 236 Millimeter Height
Type
Calibrator
Features
  • Small, Streamlined Shape, Rugged, Reliable Design Stands up to Field Use
  • Easy to Read Measure/Source Screen Lets You View Input and Output Simultaneously
  • Measure Volts, Milliamp, RTDs, Thermocouples, Frequency and Ohms to Test Sensors and Transmitter
  • Support Flow Meter Testing with Frequency and CPM Functions
  • Perform Fast Linearity Tests with Auto-Step and Auto-Ramp Features
  • Power Transmitters During Test Using Loop Supply with Simultaneous Milliamp Measurement
  • Store Frequently used Test Setups for Later Use
Qty Unit price
Ea
1 $4,495.19
