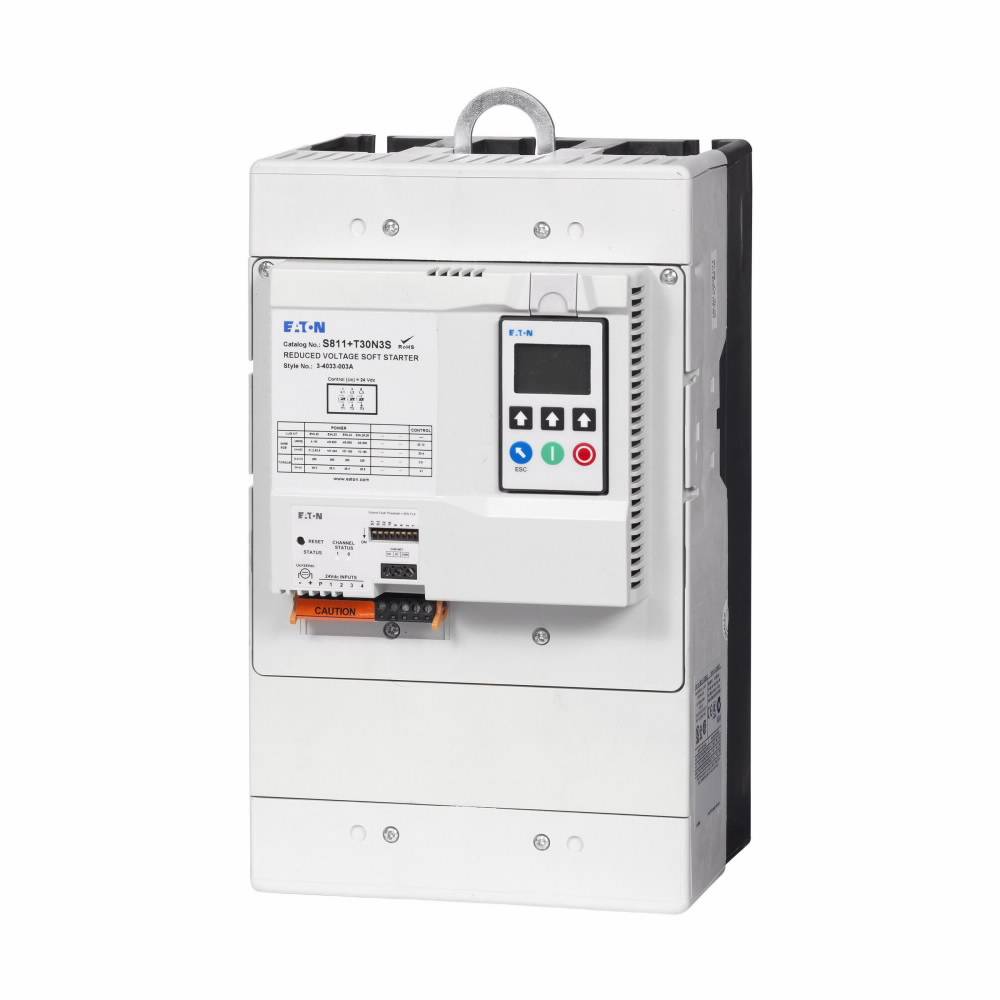

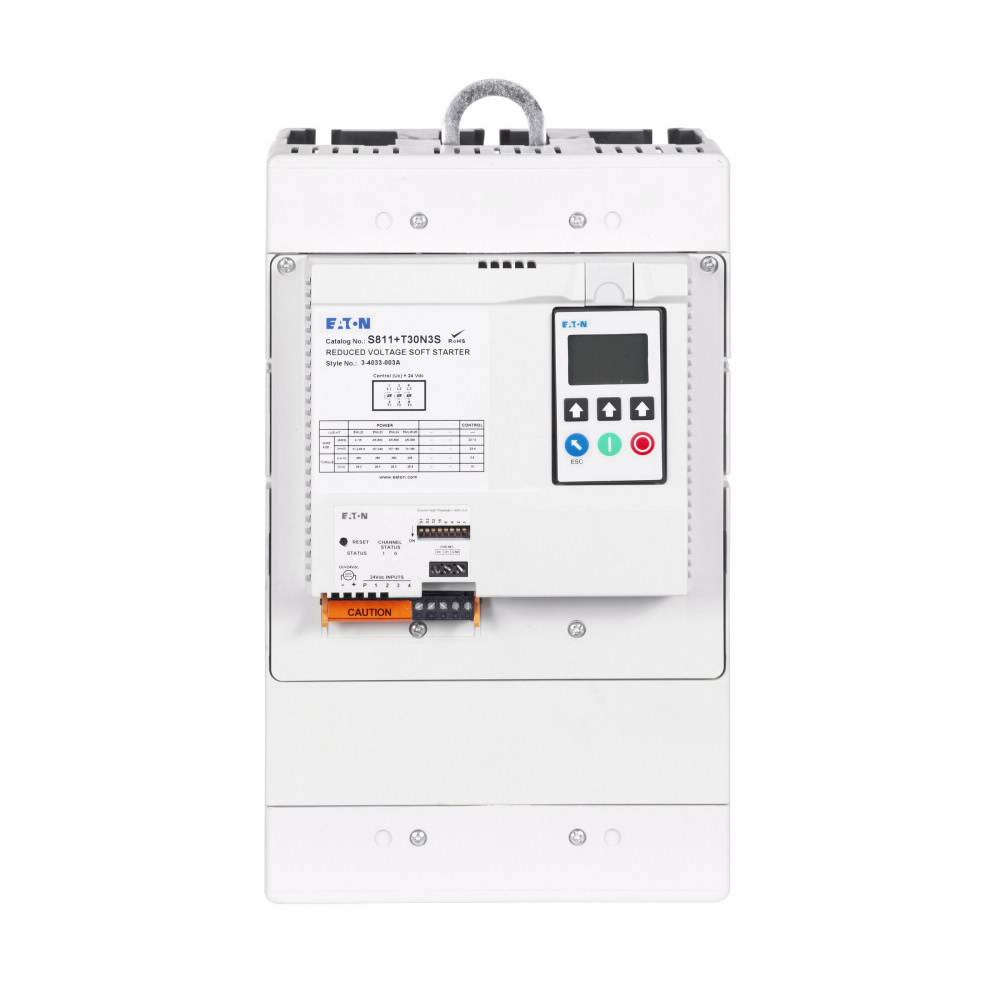

EATON S811+T30N3S Non-Combination T-Frame Soft Starter With Digital Interface Module, 21.6/26.4 VAC V Coil, 3 Poles, NEMA 0/1/3R/4/4X/7/9/12 Enclosure

Short Description

EATON S811+ offers all the popular features of the S801+ and adds new enhanced functionality with the new digital interface module (DIM), communications, metering, monitoring and diagnostics capabilities. EATON line of S811+ reduced voltage soft starters is very compact, multi-functional, easy to install and easy to set operating parameters. Designed to control the acceleration and deceleration of 3-phases motors upto 690 V, the line is available from 11 A to 1000 A. The S811+ is designed to be a complete package, combining the silicon controlled rectifiers (SCRs), bypass contactor and overload in one, very compact unit. The S811+ is available as a component for panel mounting, in motor control centers or in enclosed control (NEMA type 1, 3R, 4, 4X, 7/9 and 12).

EATON Soft Starter, Non-Combination T-Frame, Series: S811, 200 to 600 VAC, 304 A, 47/63 Hz Frequency, 185 kW Wattage, 250 hp, 300 hp Motor, 21.6/26.4 VAC Coil, 3 Pole, 0.5 to 18 s Timing, 3 ph, Lug Connection, Solid-State Overload Relay, NEMA 0/1/3R/4/4X/7/9/12 Enclosure, -30 to 50 deg C Operating, 6.47 in L x 7.65 in W x 12.71 in H Dimensions

MFG #: S811+T30N3S

EECO #: CHS811+T30N3S

Brand: Eaton
UPC #: 786685558998
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121521
Approval
UL, CSA, CE, CC
Application
Motor, Power Control Equipment, Electrical Assemblies, Panels and OEMs Applications
Coil Voltage
21.6/26.4
Current Rating
304 Amp
Enclosure Type
NEMA 0/1/3R/4/4X/7/9/12
Overload Relay
Solid-State
Voltage Rating
200 to 600
Connection Type
Lug
Number Of Poles
3
Frequency Rating
47/63
Mounting
Panel
Enclosure
NEMA 1/3R/4/4X/7/9/12
Operating Temperature
-30 to 50
Type
Non-Combination T-Frame
Series
S811
Wattage
185
Inclusion
Digital Interface Module
Overloads
Programmable
Dimensions
6.47 in L x 7.65 in W x 12.71 in H
Motor Power
250 hp, 300 hp
Starting Time
0.5 to 180 Second
Operation Type
Soft Start
Amperage Rating
304
Features
  • Communication capabilities with various protocols
  • Digital interface module (DIM) provides an intuitive, easy to use human interface with powerful configuration capabilities to maximize system performance
  • Door or device mounted dim enables users to safely configure, commission, monitor and troubleshoot the system at the electrical panel without opening the enclosure door
  • System operating parameters can be monitored enterprise wide through a communications network
  • Increase uptime by providing data for process management and preventive diagnostics
  • Run bypass mode greatly reduces internal heating created by the greater power dissipation in the SCRs
  • Bypass contactors directly connect the motor to the line and improves system efficiency by reducing internal power losses
  • Internal solid state overload protection provides accurate current measurement and trip settings
  • Internal run bypass contactors and overload protection eliminate the need for additional devices, reducing enclosure sizes minimizing installation and wiring time and reducing overall assembly size and cost
  • Wide range of overload FLA settings and a selectable trip class offers users the flexibility to fine tune the starter to match specific application requirements
  • Variable ramp times and torque control settings provide unlimited starting configurations, allowing for maximum application flexibility
  • Kick start feature enables soft starting of high friction loads
  • Soft stop control for applications where an abrupt stop of the load is not acceptable
  • Pump control option with sophisticated pump algorithms on both starting and stopping that minimize the pressure surges that cause water hammer
  • 6 SCRs control all 3 motor phases, providing smooth acceleration and deceleration performance
  • Soft acceleration and deceleration reduces wear on belts, gears, chains, clutches, shafts and bearings
  • Reduce the peak inrush current's stress on the power system
  • Minimize peak starting torque to diminish mechanical system wear and damage
